A collaborative project realized by Jan M. Sieber and Ralph Kistler
The documentary film was made by Susann Maria Hempel

Overall dimensions of the installation: 180cm x 80cm x 25cm. Monkey: 75 cm tall
Inside components and materials: Kinect Sensor, Computer, Microcontroller, electronic components, Servo motors, steel. Casing: synthetic fabrics, cord, steel
2011


Get a higher resolution here

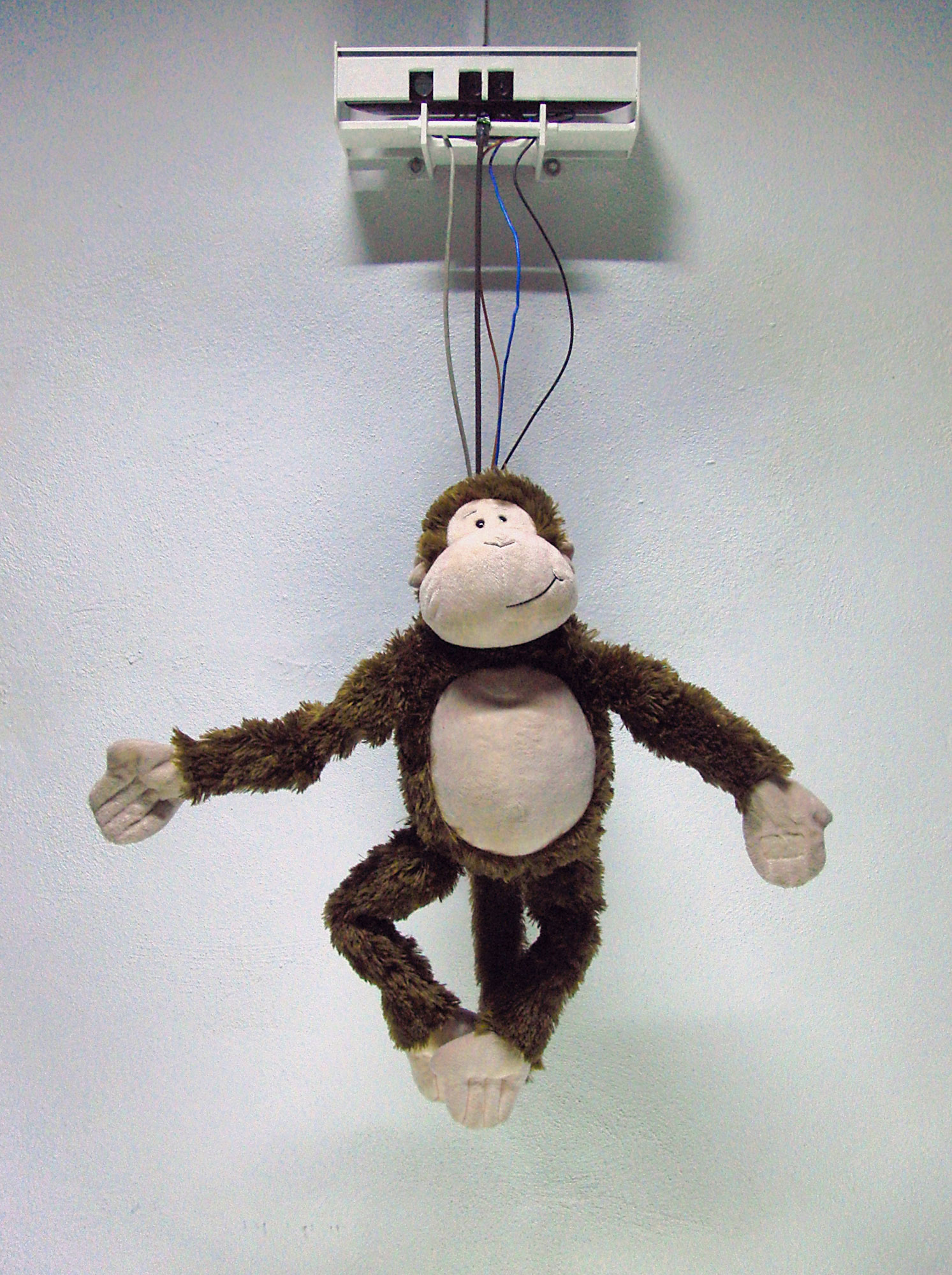

A cuddly toy monkey hanging on a wall like a Jumping Jack.

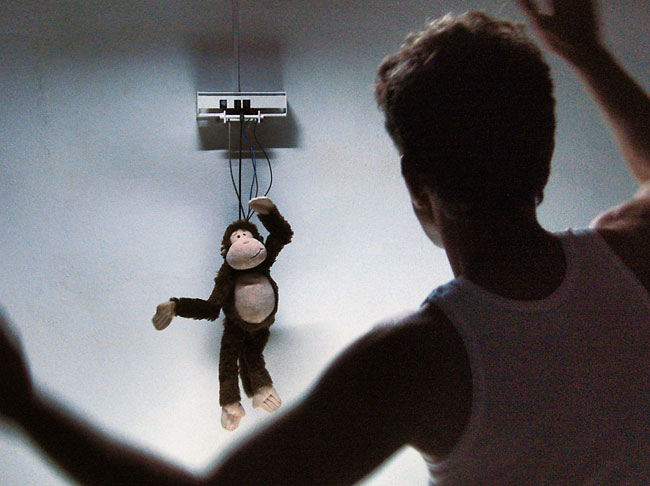

With a friendly "Hello" the puppet starts to react to the visitors movements
and immediately apes every gesture with its arms and legs, its head and body.
You can let the ape act smoothly or invite him to a wild dance.
But in a subtle way the monkey asks for another move you have never ever performed before.
Playing the game you will loose control unconsciously
and after the seductive encounter you might start wondering
what is all this monkey business about?
Who pulls the strings?


Get a higher resolution here

“Monkey Business” is an interactive installation where a cuddly toy monkey apes the gestures of the user. The monkey hangs like a Jumping Jack on the wall and gets his vividness from 10 built-in servos that are driven by a set of a sensor, a processing data computer and a microcontroller. The flexible suspension of the ape together with fast responding motors allows an astonishing quick-witted behavior and a tempting interaction experience for the user. All technical devices are covered in order to facilitate a direct communication between the visitor and the soft toy. The work reflects in a playful way the problem of real natural interaction and states an ironic comment about the present art business through this iconic monkey figure.


Get a higher resolution here

The system consists of a tracking camera sensor (Microsoft XBox Kinect) on top of the toy monkey for tracking the visitor‘s movements, a hidden computer to analyze and convert the tracking data (OpenNI Framework, osceleton, OSC), a programming patch (Processing) to process the data into movement angles and send it to a microcontroller board (Arduino) inside the toy‘s body, which controls ten servo motors attached to a metal sceleton and in this way moves the ape‘s arms, legs, head and body.

Getting things work....

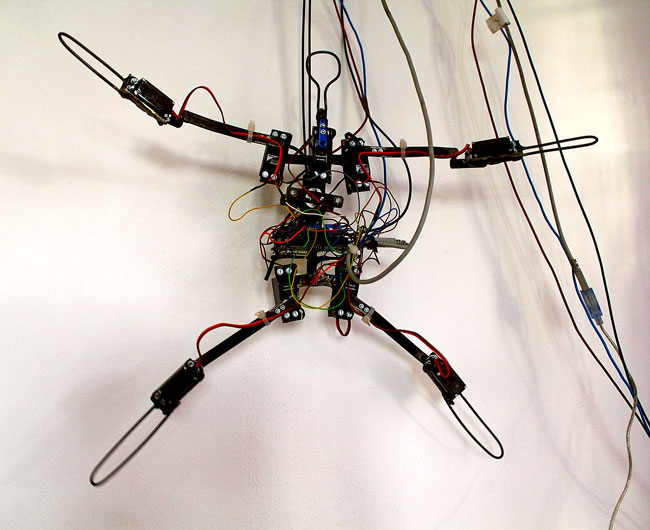

Sceleton


Get a higher resolution here

The documentary film of Susann Maria Hempel quotes the following artworks

Jean Baptiste Deshays de Colleville, "Monkey Painter",1750
Decamps, Alexandre Gabriel, "The Monkey Painter", 1840
Hugo Rheinhold, "Monkey with skull", 1893
Gabriel von Max, "Monkey in front of a skeleton", 1890

If you want to know more about the music and watch some more takes from the making of:
